JK6836BT-C Bluetooth speaker circuit bluetooth mp3 module, MP3 player PCBA circuit

Shenzhen J&K Ideal Electronic Co., Ltd.
(Gold Supplier)
Shop Opened    7 Years
Star Level:0
Product Price : USD 0.99~2.88
Min Order : 2 Pieces
Audio Format Support: APE, FLAC, MP3, WMA, WAV, MP1, MP2
Brand Name: J&K
Model Number: JK6836BT-C
Screen: Yes
Battery Life: > 20 hours
Style: Card
Function: Bluetooth, FM Radio, USB/TF-MP3/FM/Bluetooth
Place of Origin: China
Product type: MP3 decoder board
Memory: USB/TF
Material: Plastic+PCB
Panel color: Black
Panel size: 93*30*30mm
Voltage: 5V/12V
Application: Pro audio, Amplifier,Speaker,car audio...
Product name: Bluetooth speaker circuit record module, MP3 PCBA
Product Description
Product Name
JK6836CT-C Bluetooth speaker circuit bluetooth mp3 module, MP3 player PCBA circuit
Bluetooth 5.0 Version, FM radio, Line in
QTY: 400PCS/CT,  Carton size: 48*34*46cm, Weight: 16.5KG

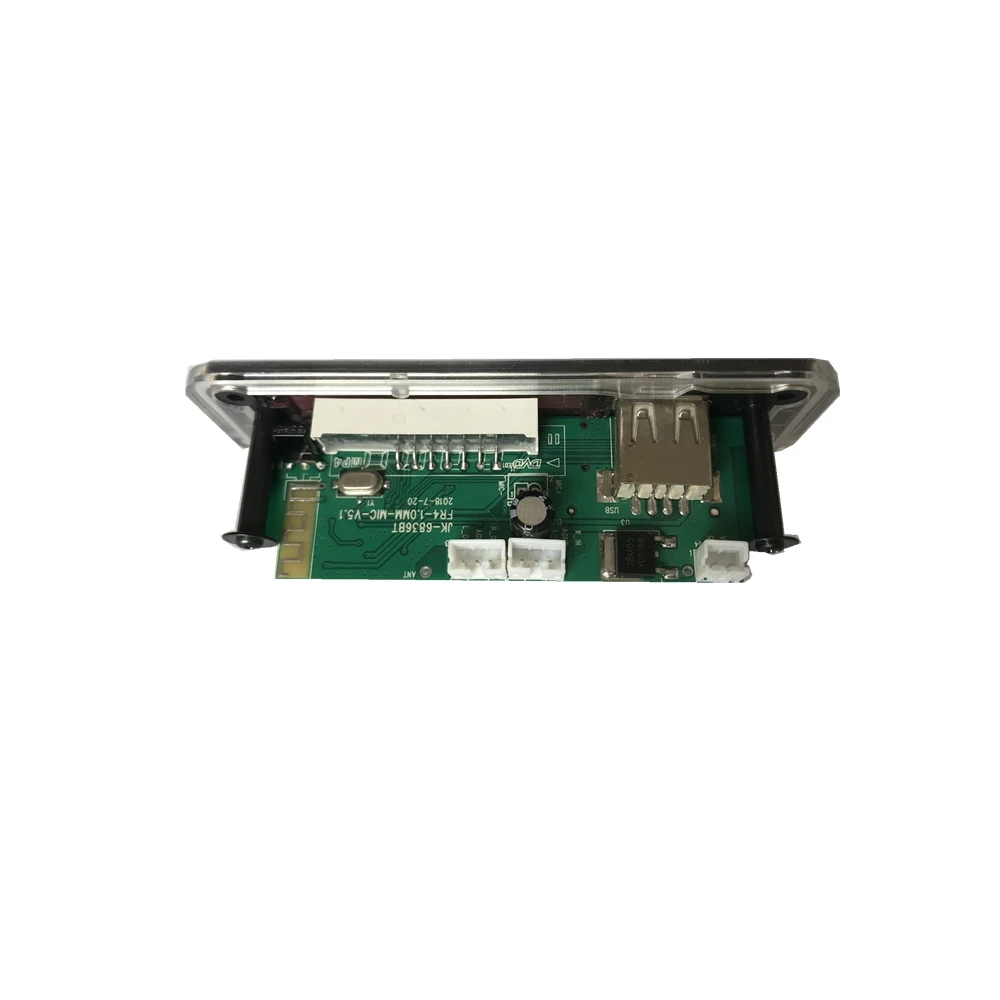

JK6836BT-C Bluetooth speaker circuit bluetooth mp3 module, MP3 player PCBA circuit
  • Main function

1.Bluetooth /USB / TF /Line in/ FM /led display
2. Format:MP3 /WMA /WAV/ FLAC/APE
3. Color dancing led display
4. IR remote control.
5.Product size: 93*30*30 mm 6, Power supply: DC5V (optional 12v)
Keys functions:
MODE: USB/TF /AUX/FM/Bluetooth switch.
Long press for choose previous folders.
NEXT/V+: Under MP3 mode, short press NEXT, long press VOL+.
Under AUX mode, press VOL+.
Under FM mode, short press to selection up, long press VOL+.
Under bluetooth mode, press VOL+.
PLAY/PAUSE:Under MP3 mode, short press PLAY/PAUSE, long press choose next folder
Under AUX mode, press play/mute.
Under FM mode, short press to automatic selection.
Under bluetooth mode, press play/mute.                               Long press for choose next folder.
PRE/V-: Under MP3 mode, short press LAST, long press VOL-.
Under AUX mode, press VOL-
Under FM mode, short press to selection down, long press VOL-.
Under bluetooth mode, press VOL-.
Details Images

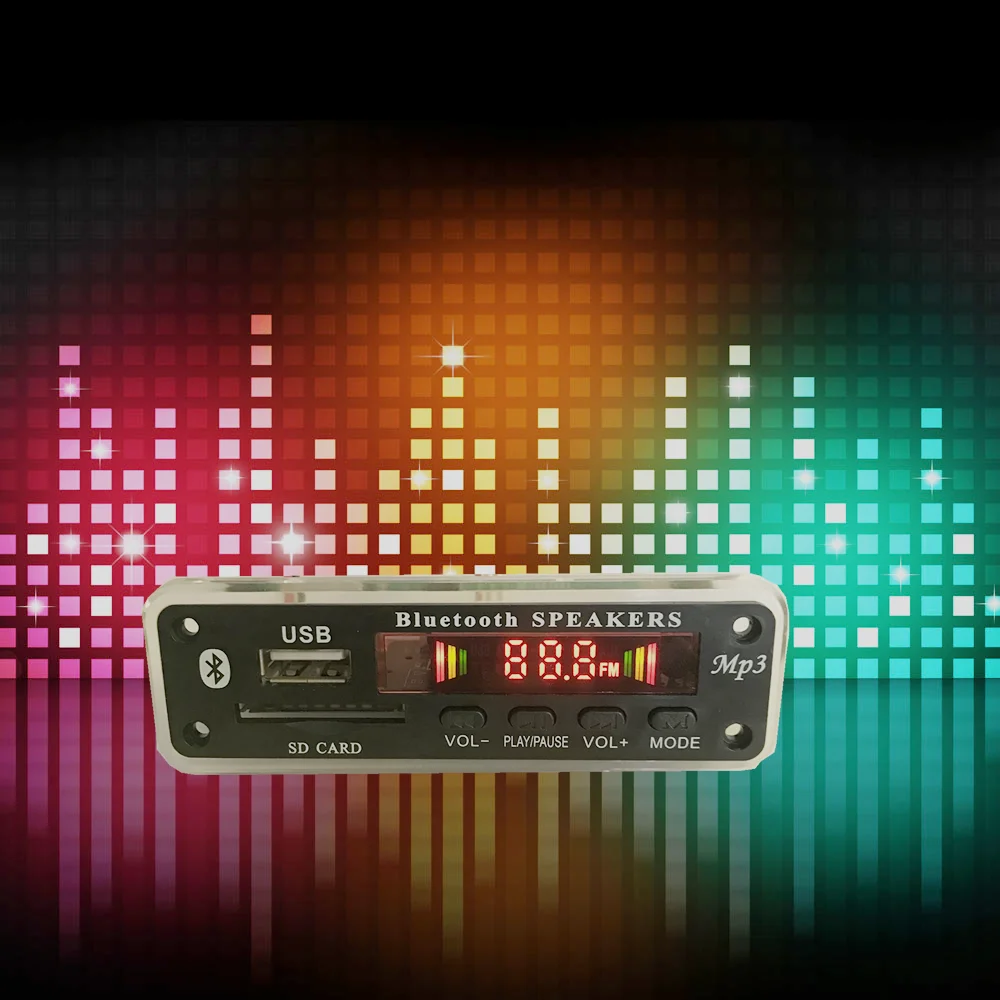

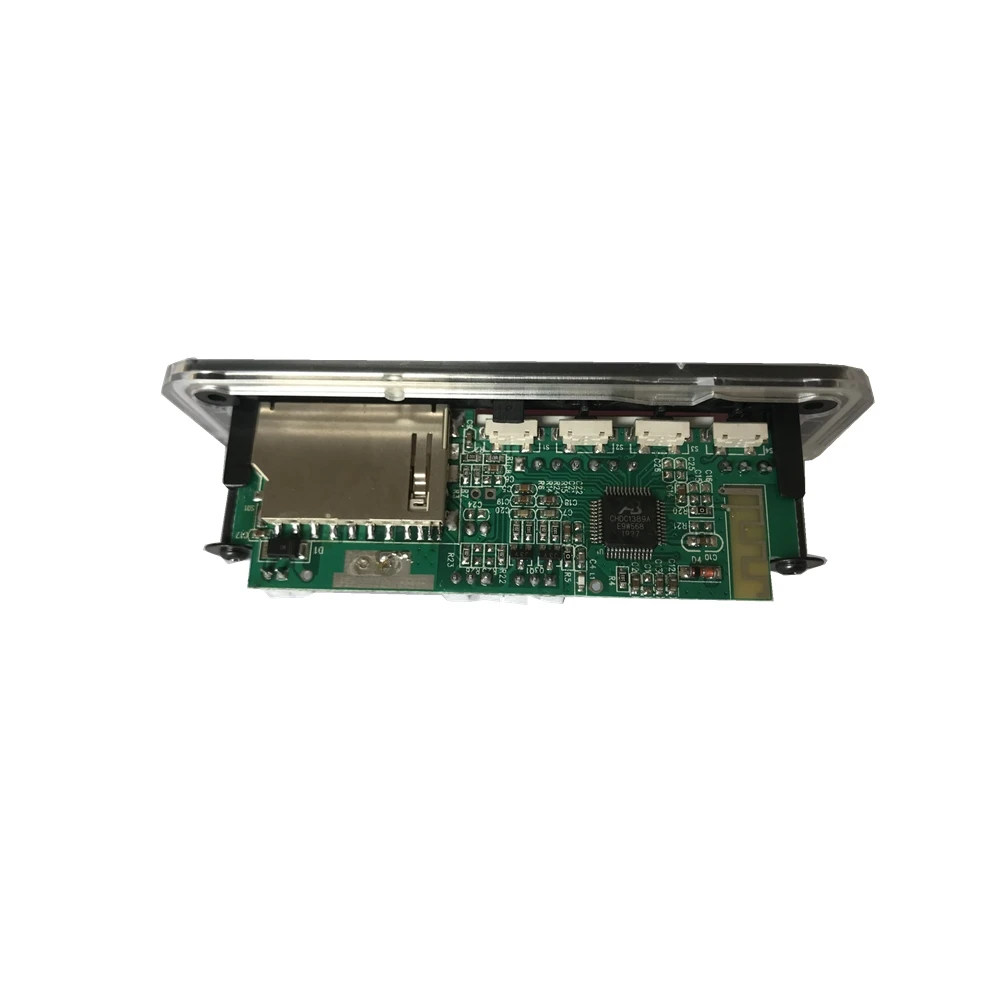

High quality sound mp3 decoder board
*We use high performance 32-bit RISC CPU, DC-160MHZ operation,
*Bluetooth 5.0 Version, support a2dp/avctp/avdtp/avrcp/hfp profile, receiver with -85dBm sensitivity.
*FM radio frequency: 87.5~108MHz
*16-bit stereo DAC, SNR>92dB
*MP3 decorder support 32–320kbps
*FAT16 or FAT32 systems supported
This kind is a 32 bits RISC microcontroller.

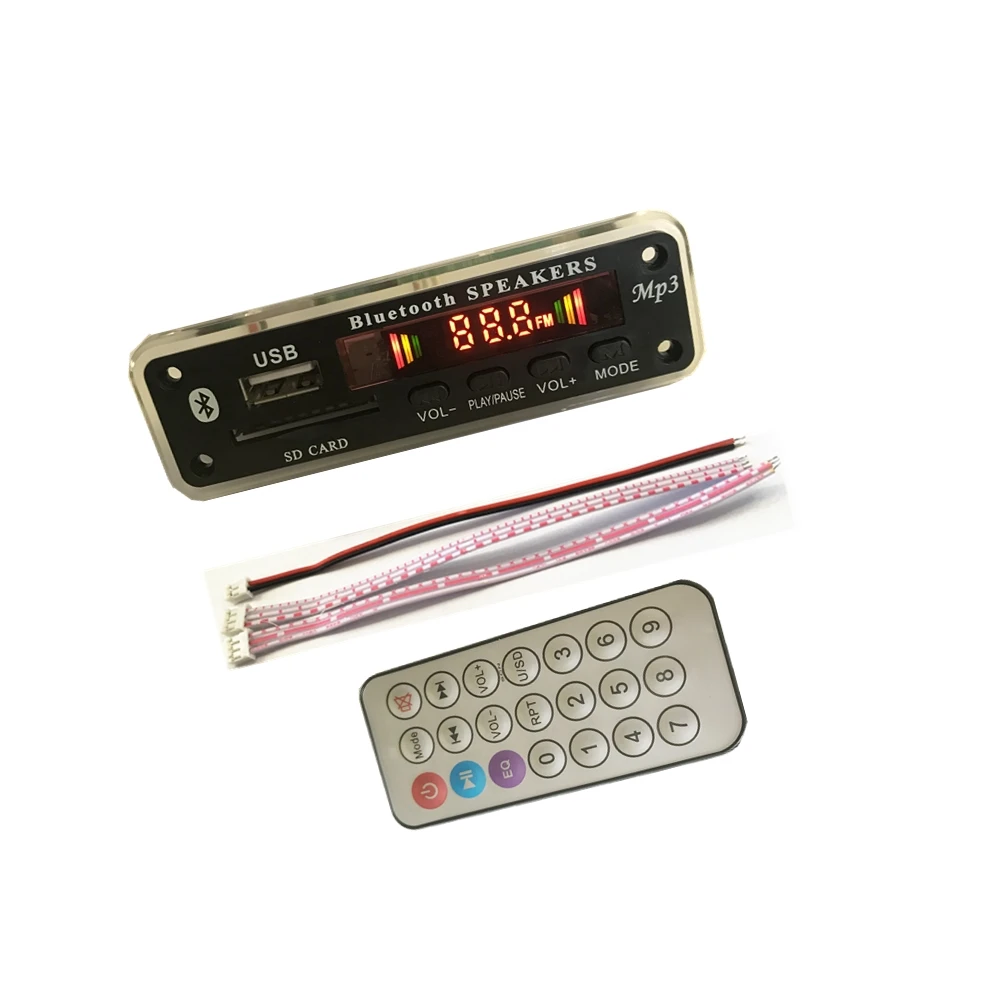

Remote control

Product Usage


Car stereo

Broadcasting system

Intelligent housing system
